Appearance
Overview
- Benefit of JIMI Open API, distributor or application vendor could provide tracking service to customers by calling the API and use your own GUI client, App or Website, this might improve the localization or user experience.
- Your App or web client should connect to your application server, rather than connect to JIMI API Server directly , use your application server connect to JIMI Server instead.
Usage
- Contact us to apply your appKey and appSecrect, you need to provide your account.
- According to this document to implement your application server to obtain access_token.
- Calling other interfaces with access_token to fulfil your business logic.
Conventions
Encoding, format & Timezone
UTF-8 and JSON is used by default.
Context-Type: default application/json charset=utf-8
The API use UTC (GMT +0)time in default: format yyyy-MM-dd HH:mm:ss
Common response fields
| Key | Type | Required | Descripion |
|---|---|---|---|
| code | int | Yes | resul code |
| message | string | No | Descripion |
Result code description
| Code | Value | Description |
|---|---|---|
| -1 | -1 | The system is busy |
| 0 | 0 | success |
| 1XXX | 1001 | Parameter error (lack of required parameters or format error). See interface description for details |
| 1002 | Illegal user/illegal device (not their own or subordinate account or device) | |
| 1003 | Repeat operation | |
| 1004 | Illegal access, token exception! (Token failure or nonexistent) | |
| 1005 | Illegal access, IP access exceeds limit! | |
| 1006 | Illegal access, too frequently request! | |
| 1007 | Illegal access, request method error! | |
| 1008 | Illegal access, abnormal incoming! | |
| 12001 | platform account creation failed | |
| 12002 | device transfer failed | |
| 12003 | Geo-fence creation failed | |
| 12004 | Geo-fence deletion failed | |
| 12005 | Fail to send command |
Error code：
| Code | Value | Description |
|---|---|---|
| Create account | 213 | Account already exist |
| 214 | Account does not exist | |
| 215 | User type error. Possible reasons: 1.User type is empty; 2. User type does not exist; 3. Current login user do not have permission to create new type of user. | |
| Device transfer | 217 | Target user does not exist |
| 218 | User can only transfer/sale devices to sub-account | |
| 219 | IMEI list is illegal | |
| 220 | Number of IMEI exceeds limitation. | |
| Geo-fence | 41001 | Exceed max number of Geo-fences supported |
| 41002 | Fence name is already exists | |
| 41003 | The device is not online | |
| 41004 | Geo-fence operation failed | |
| Command | 225 | time out |
| 226 | Parameter error | |
| 227 | The command is not executed correctly | |
| 228 | The device is not online | |
| 229 | Network error, connection error, etc. | |
| 238 | Device interrupted | |
| 240 | Data format error | |
| 243 | Not supported by device | |
| 252 | The device is busy | |
| 30010 | INCORRECT INSTRUCTION_PASSWORD |

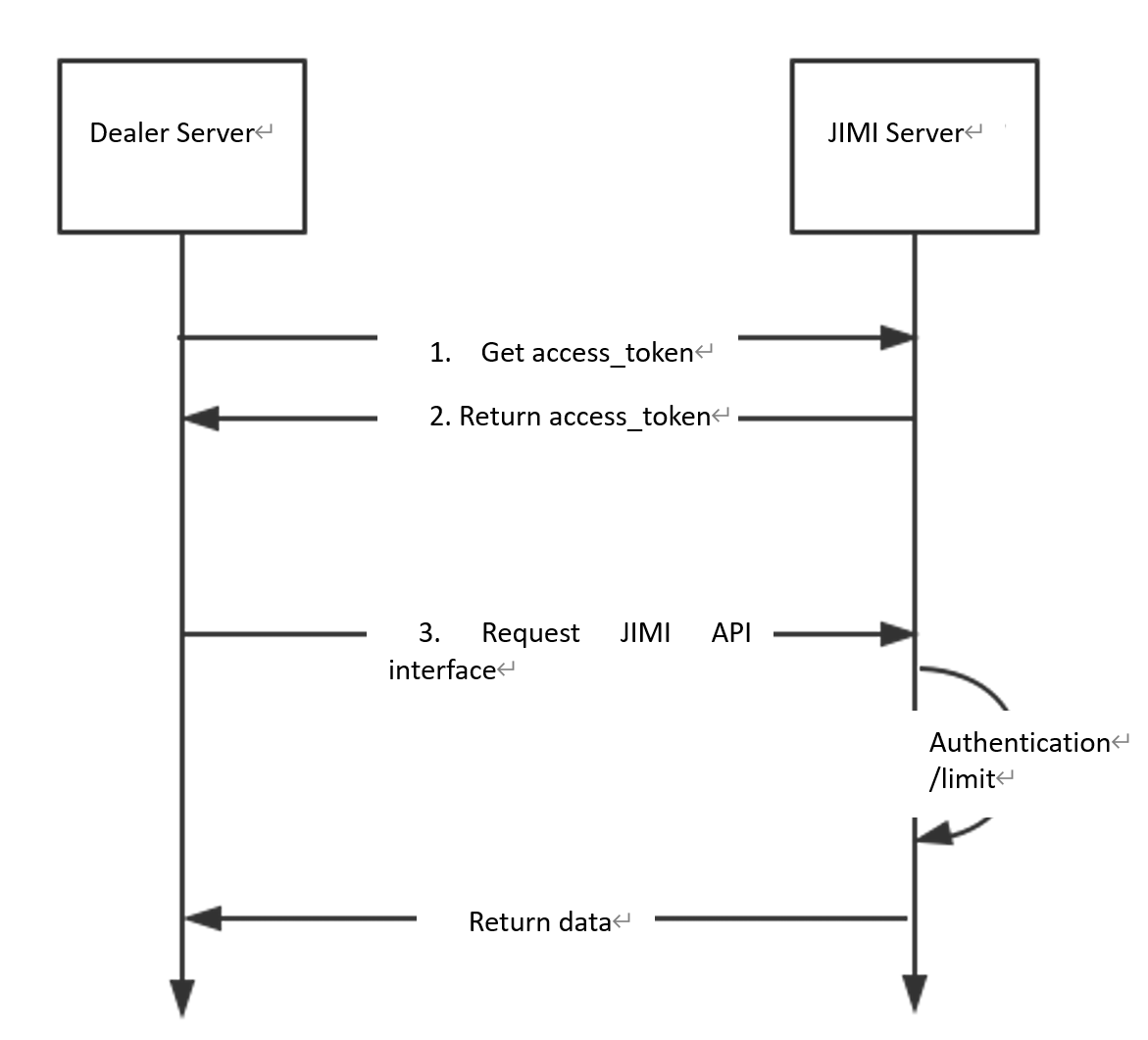

API Work Flow
API Features
| Interface type | Method | Description |
|---|---|---|
| Access Control | jimi.oauth.token.get | Get access token |
| jimi.oauth.token.refresh | Refresh access token | |
| Device Management | jimi.user.device.list | List all devices of sub-account |
| jimi.track.device.detail | Get device detail information | |
| jimi.user.device.expiration.update | Update user expiration date | |
| jimi.open.device.update | Update vehicle information by IMEI | |
| jimi.open.device.move | Move devices | |
| jimi.open.device.bind | Bind app user | |
| jimi.open.device.unbind | Unbind app user | |
| jimi.device.group.create | Create device group | |
| jimi.device.group.update | Edit device group | |
| jimi.device.group.delete | Delete device group | |
| jimi.device.group.list | Get device group list of an account | |
| Tracking Function | jimi.user.device.location.list | Get location of devices by account |
| jimi.device.location.get | Get the location of device(s) | |
| jimi.device.location.URL.share | Get sharing location URL | |
| jimi.device.track.mileage | Get the mileage data of devices | |
| jimi.device.track.list | Get the track data of device | |
| jimi.lbs.address.get | Wi-Fi, Base Station locating analysis | |
| jimi.open.platform.report.parking | Get parking/idling data of devices | |
| jimi.device.location.getTagMsg | Get the location of TAG device | |
| Media Function | jimi.device.live.page.url | Get Device Live Steaming Page URL |
| jimi.device.meida.cmd.send | Send media instruction | |
| jimi.device.history.cmd.send | Send history video instruction | |
| jimi.device.jimi.media.URL | Get Device JIMI Photo or Video URL | |
| jimi.open.video.rtmp.url | Get video rtmp url | |
| Command Management | jimi.open.instruction.list | Get command list supported by device |
| jimi.open.instruction.send | Send command to device | |
| jimi.open.instruction.result | Get results of command execution | |
| jimi.open.instruction.raw.send | Send raw command data to device | |
| Geofencing Function | jimi.open.device.fence.create | Create Geo-fence for IMEI |
| jimi.open.device.fence.delete | Delete Geo-fence for device | |
| jimi.open.platform.fence.create | Create platform Geo-fence | |
| jimi.open.platform.fence.create | Edit platform Geo-fence | |
| jimi.open.platform.fence.delete | Delete platform Geo-fence | |
| jimi.open.platform.fence.bind | Geo-fence related device | |
| jimi.open.platform.fence.list | List platform geofences of an account | |
| jimi.open.platform.fence.detail | Query single fence information | |
| Push Function | jimi.push.device.alarm | Receive Notification |
| jimi.open.instruction.raw.receive | Push Received Raw Data | |
| OBD | jimi.device.obd.list | Get the OBD data of devices |
| jimi.device.obd.fault | Get the OBD fault data of devices | |
| Reports | jimi.open.platform.fence.duration | Get entry and exit fence data of devices |
| jimi.open.platform.report.trips | Get the trips report data of devices | |
| jimi.device.alarm.list | Get device alarm list | |
| jimi.open.device.rfid.list | Get RFID reporting information | |
| Account Management | jimi.user.child.list | List all sub-account |
| jimi.user.child.create | Create sub-account | |
| jimi.user.child.del | Remove sub-account | |
| jimi.user.child.move | Move account | |
| jimi.user.child.update | Edit user information |
Request URL
The unique request URL is:
Please use the URL of the corresponding node according to the node to which your OPEN API account belongs
Note:
TS：http://open.10000track.com/route/rest
TSP HK/SG: https://hk-open.tracksolidpro.com/route/rest
TSP EU: https://eu-open.tracksolidpro.com/route/rest
TSP US: https://us-open.tracksolidpro.com/route/rest
⚠️Different interfaces are identified by request parameter method.
Security
- Client should get access_token first before calling the interface, which is generated by JIMI Server by calling jimi.oauth.token.get interface(method=jimi.oauth.token.get) with provided appKey and appSecrect.
- appKey and access_token are required to sign request parameters when calling API. JIMI server will validate the the request parameters by checking the sign value.
Common parameters
The parameters of each request should include common parameters and interface private parameters.
For example:
if you call the "jimi.oauth.token.get" interface, you need to provide : 7(common parameters) + 3(private parameters) = 10 (parameters, key/value)
Following are the common parameters:
| Name | Type | Required | Description | Remark | Default |
|---|---|---|---|---|---|
| method | string | Yes | API interface name | ||
| timestamp | string | Yes | Timestamp, format:yyyy - MM - dd HH:mm:ss. Plus or minus 10 minutes is allowed. e.g:2012-03-25 20:00:00 | GMT(UTC) time | |
| app_key | string | Yes | appKey | from JIMI | |
| sign | string | Yes | A signature base on parameters, appKey, appSecrect. | ||
| sign_method | string | Yes | Optional, signature method. Available value: md5 | md5 | md5 |
| v | string | Yes | Optional, specify the API version. System default 1.0, support version: 0.9, 1.0 | 0.9: no signature checking 1.0: check signature | |
| format | string | Yes | Optional, specify response format. | json |
Note:
The parameter V uses a difference of 0.9 and 1.0:
Using 0.9 will not perform Sign signature verification
Using 1.0 will verify the Sign signature
Function description of Sign signature verification:
The data receiving end gets the transmission text, but needs to confirm whether the text is the content sent by the sender, and whether it has been tampered with in the middle. Therefore, the receiver uses its own public key to decrypt the signature and obtains the digest of the text, then uses the same method as the sender to calculate the digest value of the text, and compares it with the decrypted digest, and finds that the two are exactly the same. It means that the text has not been tampered with.
Signature
To protect API calling from hacked, any API calling needs to be with a signature. JIMI server will check signature based on request parameters. Illegal signature request will be rejected. Signature algorithms supported is: md5 (sign_method is a common parameter mentioned above).
Following is the algorithm of signature:
- Sort all request parameters with parameter key in alphabetical order (including common parameters and method specific parameters, but NOT include sign and byte type parameter. For example:
foo=1, bar=2, foo_bar=3, foobar=4
Result: bar=2, foo=1, foo_bar=3, foobar=4
- Remove all equal sign and comma:
bar2foo1foo_bar3foobar4
- Then concatenate appSecrect to the before and end of the result string and get the md5 value. E.g：
md5(appSecrect+bar2foo1foo_bar3foobar4+appSecrect), the real string should like: md5(h9lri085eachcz4sn7gwnkh6j0jt0yz4bar2foo1foo_bar3foobar4h9lri085eachcz4sn7gwnkh6j0jt0yz4)
⚠️ Note that the string should be in UTF-8 encoding.
⚠️ Note that the sign should be upper case string.
- If the parameter value is a byte stream, it should be converted to hexadecimal. For example：
hex("helloworld".getBytes("utf-8")) = "68656C6C6F776F726C64"
MD5 is the 128-bit summary algorithm and is in hexadecimal. a hexadecimal character can represent four bits, so the signature string length is 32 hexadecimal characters.
bash
public static String signTopRequest(Map<String, String> params, String seccode, String signMethod) throws IOException {
// 1：sort parameter key
String[] keys = params.keySet().toArray(new String[0]);
Arrays.sort(keys);
// 2:: Put all parameter names and parameter values together
StringBuilder query = new StringBuilder();
if (Constants.SIGN_METHOD_MD5.equals(signMethod)) {
query.append(seccode);
}
for (String key : keys) {
String value = params.get(key);
if (StringUtils.areNotEmpty(key, value)) {
query.append(key).append(value);
}
}
// 3: use MD5/HMAC to encrypt
byte[] bytes;
if (Constants.SIGN_METHOD_HMAC.equals(signMethod)) {
bytes = encryptHMAC(query.toString(), seccode);
} else {
query.append(seccode);
bytes = encryptMD5(query.toString());
}
// 4: convert binary to uppercase hexadecimal
return byte2hex(bytes);
}
public static byte[] encryptHMAC(String data, String seccode) throws IOException {
byte[] bytes = null;
try {
seccodeKey seccodeKey = new seccodeKeySpec(seccode.getBytes(Constants.CHARSET_UTF8), "HmacMD5");
Mac mac = Mac.getInstance(seccodeKey.getAlgorithm());
mac.init(seccodeKey);
bytes = mac.doFinal(data.getBytes(Constants.CHARSET_UTF8));
} catch (GeneralSecurityException gse) {
throw new IOException(gse.toString());
}
return bytes;
}
public static byte[] encryptMD5(String data) throws IOException {
return encryptMD5(data.getBytes(Constants.CHARSET_UTF8));
}
public static String byte2hex(byte[] bytes) {
StringBuilder sign = new StringBuilder();
for (int i = 0; i < bytes.length; i++) {
String hex = Integer.toHexString(bytes[i] & 0xFF);
if (hex.length() == 1) {
sign.append("0");
}
sign.append(hex.toUpperCase());
}
return sign.toString();
}
